Zero Clearance Throat Plate Insert for Craftsman Model 113 Table Saw
113.298240USD $18.79
Condition : New
Free Shipping
Notify me when the price drops
We will email you if we find a lower price on this product!
This piece measures 355mm long, 95mm wide, and 5.5mm thick
The radius of the circle on each end is 47.6mm (see pic)
Confirmed fit on 113.298240 and others
This throat plate insert is a replacement for your original throat plate and requires 2x 10-32 machine screws and 1x 10-32 nut for installation. For assembly simply take the front and back half, put both pieces together with CA on the tabs, clamp gently between two pieces of plywood, and wait 24 hours. Once assembled, sand the insert flush with 200-400 grit sandpaper. Then, take the tab for the back and screw it in with a 10-32 screw. Once screwed all the way in and the plastic threads are stripped, add the nut and screw until firm. Finally, install the insert into your table saw with the remaining 10-32 screw.
In addition to its zero clearance design, this insert also comes equipped with a splitter that helps to keep the kerf open, reducing the risk of binding and kickback. However, it is important to note that table saws are extremely dangerous and it is recommended to use both a GRR-Ripper and push stick when using this insert to prevent most chances of kickback, as the splitter will not be as effective as a riving knife. This insert is provided without liability, warranty, or guarantee, although we do accept returns.
** No hardware or glue is provided a
- 3D Printed from a durable composite
- Water, Chemical, and dust-proof
- Designed by BenjaminBradley on thingiverse:4927171
Show more items Contact Give us a call
Send us a message

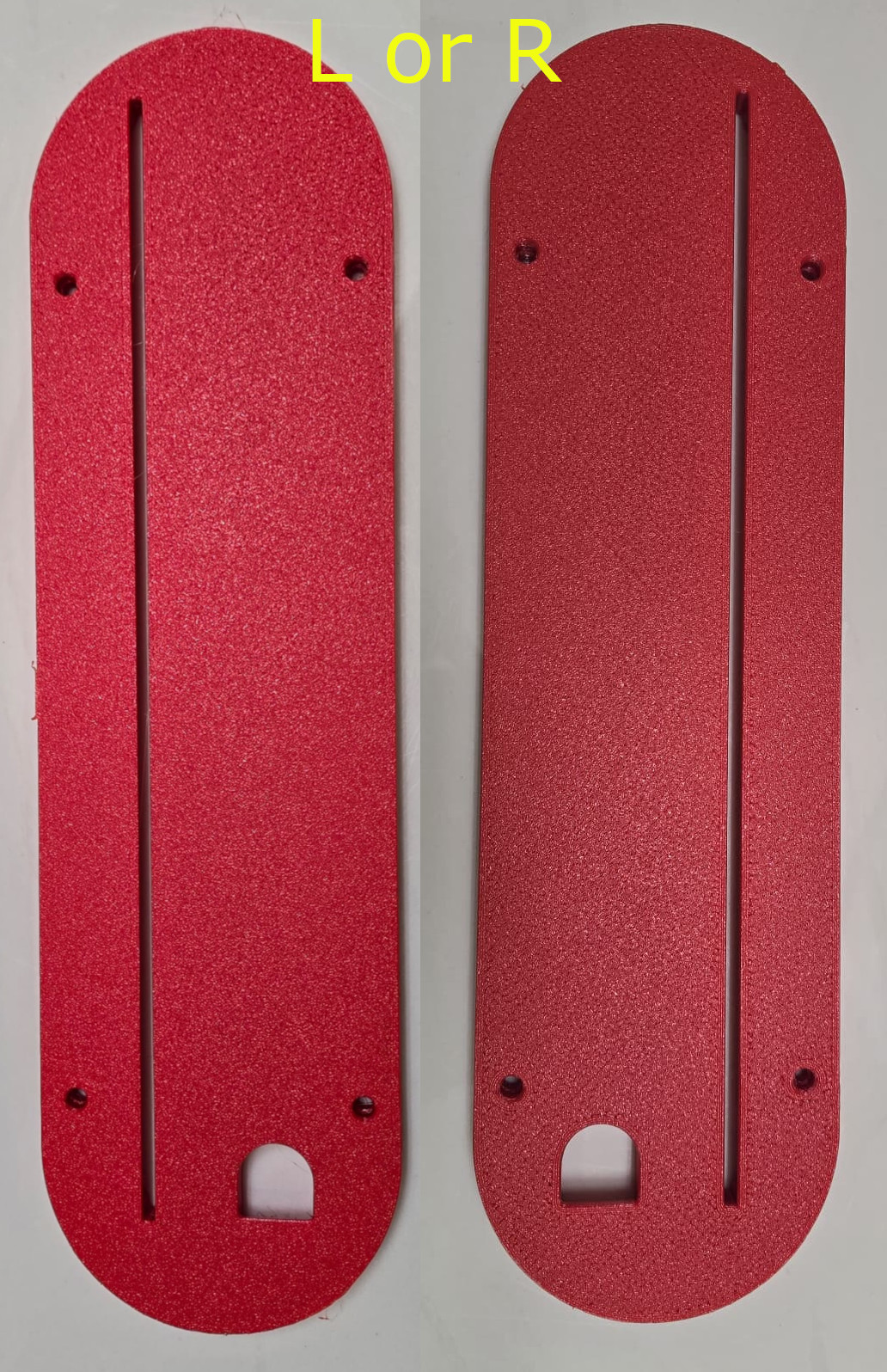

Zero Clearance Dado Insert for Delta Unisaw 10" Contractor Table Saws Right-LEFT
