Wilton Direct Gear Drive Drill Press Models 2475 & 2476 Operating & Parts Manual Type of Manual: Operating & Parts
For Models: 2475, 2476
Description: This manual covers the Wilton Direct Gear Drive Drill Press Models 2475 & 2476. While this manual claims to be an operation manual, it has limited information on the operation. It covers Lubrication, Electrical Schematics, and it also includes a Sectional Parts View and Parts List. The manual has about 15 pages. To inspect the quality of the manual, and to view select pages, please click on the gallery images above.
Includes sections on:
Limited Operation Information
Lubrication
Electrical Diagrams

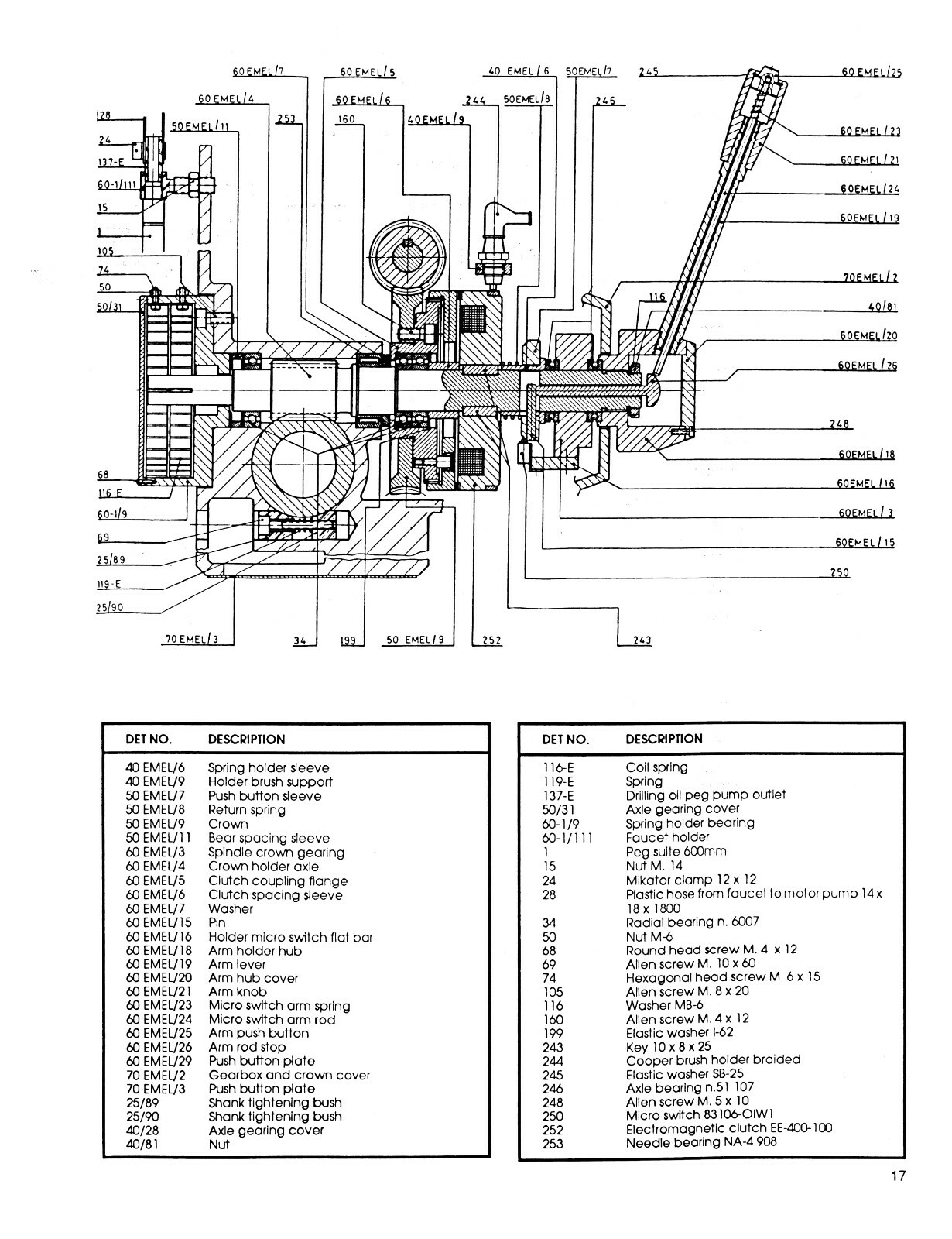

Sectional Parts Views
Parts Lists
Number of Pages: Approx. 15 Publication Date: N/A Publication No.: 907804-1
Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice.
About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop.
