Viair 485c Dual Pack Stealth Black Air Ride Bag Suspension Compressor

VIAIR 485C DUAL PACK STEALTH BLACK AIR RIDE BAG SUSPENSION COMPRESSOR PUMP TRAIN

VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.

The 485C Dual Performance Value Pack features two 12V 485C compressors with newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

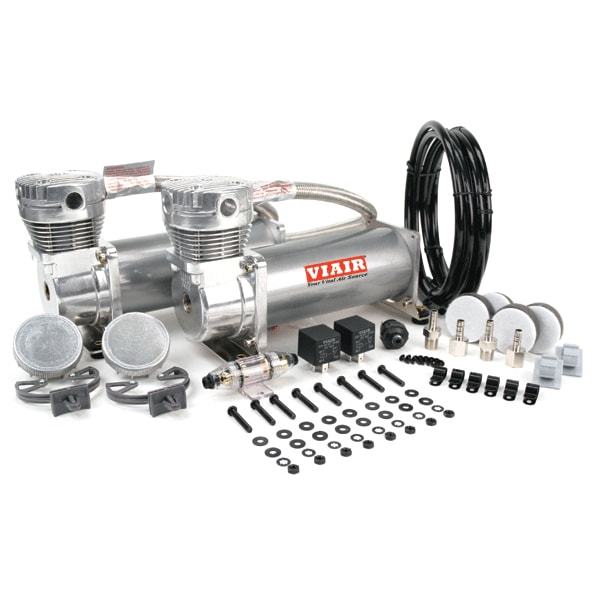

FEATURES – (2) 485C (Platinum or Stealth Black) Compressors – (2) Air Filter Assemblies – (2) VIAIR Removable Filter Covers – (2) Remote Mount Brackets – (2) Sets of Remote Mount Fittings – (2) Sets of Spare Air Filter Elements – (2) Leader Hose Clips – (6) Air Line Clips with Included Hardware – (8) Sets of Nuts, Bolts, Washers and Lock Washers – (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse) – (2) 40-Amp Relays – (1) One Pressure Switch (165 PSI on, 200 PSI off) – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve – Air Line (For Remote Mount Filter Installation)


SPECIFICATIONS – 12-Volt – Permanent Magnetic Motor – Duty Cycle: 100% @ 200 PSI – Max. Working Pressure: 200 PSI – Max. Air Tank Size: 10.0 Gallon – Combined Max. Amp Draw: 44 Amps – Ingress Protection Rating: IP67 – Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit) – Net Weight: 22.10 lbs.

PERFORMANCE DATA PSI CFM A BAR LPM A 0 3.82 23 0 110.0 23 10 3.51 26 1.0 93.0 27 20 3.27 30 2.0 84.0 31 30 3.05 32 3.0 75.0 35 40 2.90 35 4.0 71.0 37 50 2.73 37 5.0 65.0 39 60 2.61 38 6.0 61.0 41 70 2.45 40 7.0 55.0 41 80 2.34 41 8.0 50.0 42 90 2.24 41 9.0 45.0 42 100 2.09 41 10.0 41.0 42 110 1.94 42 11.0 39.0 41 120 1.87 42 12.0 34.0 40 130 1.72 42 13.0 32.0 40 140 1.64 42 14.0 29.0 39 150 1.55 42


160 1.48 41


170 1.37 41


180 1.29 41


190 1.22 40


200 1.13 39

* Supply Voltage: 13.8 Volts

FILL RATES 2.5 Gallon Tank Fill Rate 0 to 200 PSI 2 min. 20 sec. (± 05 sec.) 165 to 200 PSI 35 sec. (± 03 sec.) 5.0 Gallon Tank Fill Rate 0 to 200 PSI 4 min. 50 sec. (± 15 sec.) 165 to 200 PSI 1 min. 15 sec. (± 05 sec.)

Illusive Design & Fabrications specializes in Air Ride Suspensions, and Metal Fabrication. With In House Custom Metal Works; CAD Drawings, CNC Plasma Cutting, Plate braking, MIG & TIG Welding, Tube Bending, and other Metal Art finishing processes, our production options are near endless. We use these products everyday on our own vehicles, so we know you are getting a quality part! Built by mini truckers for mini truckers!

Thank you for your interest, business, and support!

If you have any questions please feel free to contact us.
