STEPPERONLINE 4 Axis Nema 23 Stepper Motor 270oz,2.8A &LRS-350-36

Power CNC kit

USD $283.92

Condition : New

Free Shipping

{{variant_type_name}} :
eBay
SKU: N/A This site contains affiliate links for which we may be compensated Business & Industrial / Industrial Automation & Motion Controls / Electric Motors / Stepper Motors

Notify me when the price drops

We will email you if we find a lower price on this product!

Target price (USD) $

This CNC kit includes:   4 x Digital Stepper Drive 1.0-4.2A 20-50VDC DM542T
  • 4 x Nema 23 Stepper Motor Bipolar 1.8deg 1.9Nm(269.06oz.in) 2.8A 57x57x76mm 4 Wires

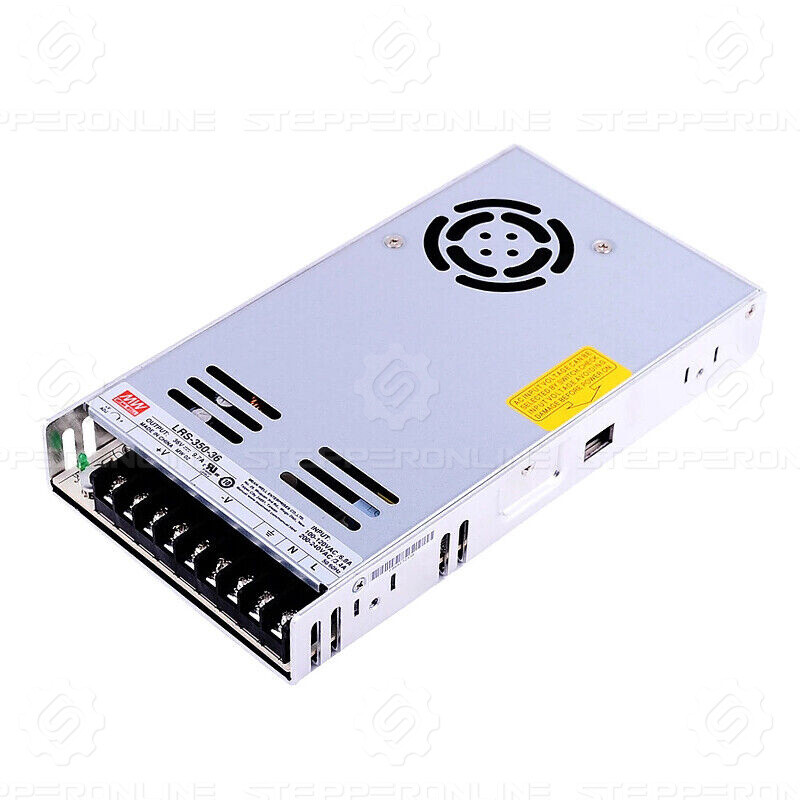

  • 2 x LRS-350-36 MEANWELL 349.2W 36V 9.7A 115/230VAC Enclosed Switching Power Supply
  •
Motor Specification
  • Manufacturer Part Number: 23HS30-2804S
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 1.9Nm(269oz.in)
  • Rated Current/phase: 2.8A
  • Phase Resistance: 1.13ohms± 10%
  • Inductance: 5.4mH ± 20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • D-cut Shaft Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500 mm
  • Weight: 1.2 kg
Connection A+ A- B+ B- BLK GRN RED BLU

Driver DM542T Specification
STEPPERONLINE 4 Axis Nema 23 Stepper Motor 270oz,2.8A &LRS-350-36 Power CNC kit
