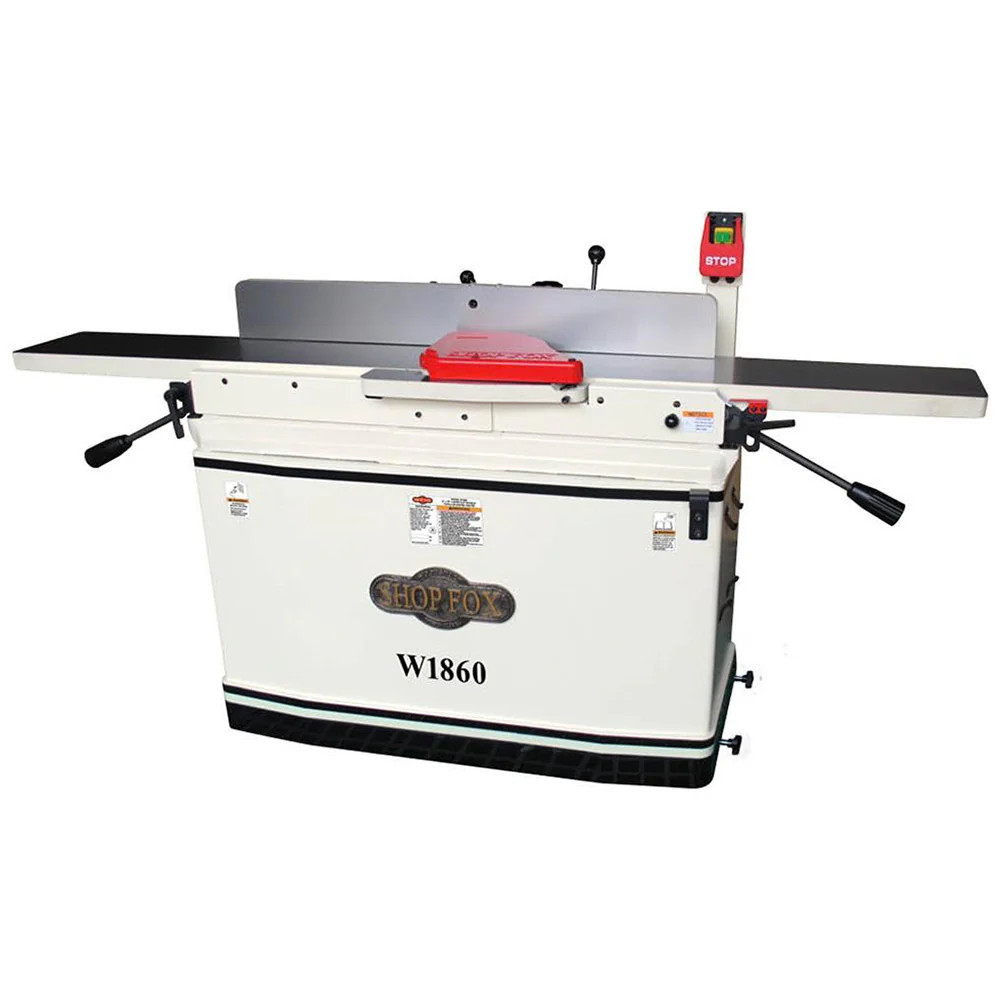

Shop Fox W1860 230 Volt 8 Inch x 76 Inch Parallelogram Spiral Cutterhead

  Features

• Lever-adjusted table height with depth gauge
• Center-mounted fence with rack and pinion adjustment
• Built-in mobile base
• Precision-ground cast-iron tables
• Extra long 40 infeed table
• Powder-coated finish
• 4 dust port with built-in dust chute
• Motor: 3 HP, 230V, single-phase
• Total table size: 9 x 76
• Fence size: 4-5/8 x 38
• Maximum depth of cut: 1/8
• Rabbeting capacity: 1/2
• Cutterhead speed: 5500 RPM
• Cutterhead diameter: 3-1/16
• Cuts per minute: 22,000
• Number of cutterhead inserts: 36
• Insert size: 15.0 x 15.0 x 2.5mm
• Power transfer: Poly V-belt
• Switch: magnetic push-button switch with large off paddle for safety
• Fence system: positive stops at +/- 45 degrees and 90 degrees
• Approximate shipping weight: 470 lbs.
• CSA certified

What's in The Box

• 8-Inch x 76-Inch Parallelogram Jointer
• Mobile Base
• Owner's Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications Sku W1860 Brand Shop Fox Voltage 230V Jointer Size 8 in. Cutterhead Type Spiral Cutterhead Diamter 3-1/16 in. Num. of Cutter Spirals 4 Num. of Indexable Cutters 36 Cutterhead Speed 5,500 Rpm Max. Width of Cut 8 in. Max. Depth of Cut 1/8 in. Min. Workpiece Length 10 in. Min. Workpiece Thickness 1/2 in. Max. Rabbeting Depth 1/2 in. Number of Cuts Per Minute 22,000 Phase Single Frequency 60 Hz Horsepower 3 Hp No Load Speed 3,450 Rpm Power Transfer Belt Drive Bevel Jointing 0 - 45 Degrees L/R Bearings Sealed and Permanently Lubricated Full-Load Current Rating 12A Minimum Circuit Size 20A Body Assembly Cast Iron Dust Port Size 4 in. Cutter Insert Type and Size Indexable Carbide
15mm x 15mm x 2.5mm Power Cord Length 6 ft. Power Cord Gauge 14 AWG Table Adjustment Type
and Movement Lever Action and Parallelogram Table Size (L x W) 76 in. x 8 in. Table Thickness 1-3/4 in. Fence Stops 45, 90, 135-Degrees Fence Size (L x W x H) 38 in. x 1-1/4 in. x 4-1/2 in. Footprint (L x W) 40 in. x 16 in. Length 76 in. Width 25 in. Height 41-1/2 in. Product Weight 365 lbs. why buy from us? secure & hassle-free shopping
