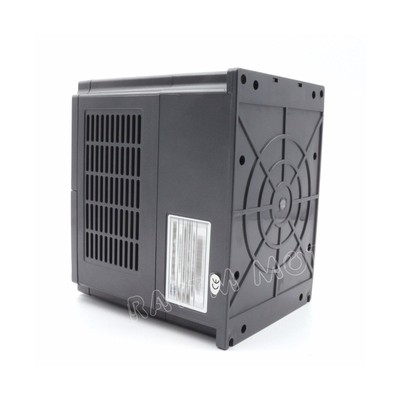

RATTMMOTOR Variable Frequency Drive 2.2KW 110V VFD Drive Inverter

RATTMMOTOR Variable Frequency Drive 2.2KW 110V VFD Drive Inverter Frequency Converter Single Phase Input, 3 Phase Output for VFD Water-cooled Air-cooled Spindle Motor Speed Control+VFD Extension Cable
Description
Features:

Technical Parameters- Control Model: SPWN. Power: 2.2KW. Input:1 or 3 phase 110V 0-50Hz/60Hz. Output:3phase 110V 0-400Hz. Communication Control: RS-485. Vibration: below 0.5G. Operation Temperature: -10 ~40C. Five-Digits Display and Status Indicator Lamp display frequency, current, revolution, voltage, counter, temperature, foward or reverse running, fault, ect.

General Control- In addition to 4 segment reduction time (0.1-6500 seconds) can be arbitrarily selected, not only can set a V / F curve, but also set torque, up to 10.0% start torque can reach 150%. There are also other functions, like an automatic voltage regulator (AVR), deceleration stop or free stop, DC brake, automatic reset reset, frequency tracking, PLC program control, transverse control, carrier adjustable by max 20kHz, ect.

Input/Output Terminals- 6 Multi-function input terminals can implement 8 speed control, program operation, 4 segment reduction switching, UP/DOWN functions, counter, external emergency stop function. There are 5 multi-function output terminals for displaying running, zero speed, counter, external abnormity, program operation and other information and warnings.

Multi-Protection FunctionsIncluding overload protection, FUSE broken-motor stops protection, over-voltage / low-voltage protection, restarted by frequency track after instantaneous stop, anti-stall during acceleration/deceleration operation, electronic circuit protection. And many other protection functions, such as over-heat protection, restriction of reverse running, direct start after power on, fault reset, parameter lock PID, one-drive-more, ect.

Installation/use environmentIn order to make the cooling effect, the frequency converter must be installed vertically and ensure that the air is flowing smoothly. Before installing and using the product, please read the instruction manual (included in the package) of the inverter carefully to give full play to its functions and ensure safety.

Product Details:

Manufacturer: ‎Huanyang

Part Number: ‎HY02D211B

Item Weight: ‎3.85 pounds

Is Discontinued By Manufacturer: ‎No

Color: ‎2.2KW 110V

Material: ‎Plastic

Power Source: ‎ac

Voltage: ‎110 Volts

Wattage: ‎2.2 KW

Batteries Included?: ‎No

Batteries Required?: ‎No

Date First Available: December 22, 2017
