New Throttle Control Cable For Gas Air Compressor

BRAND NEW!!!

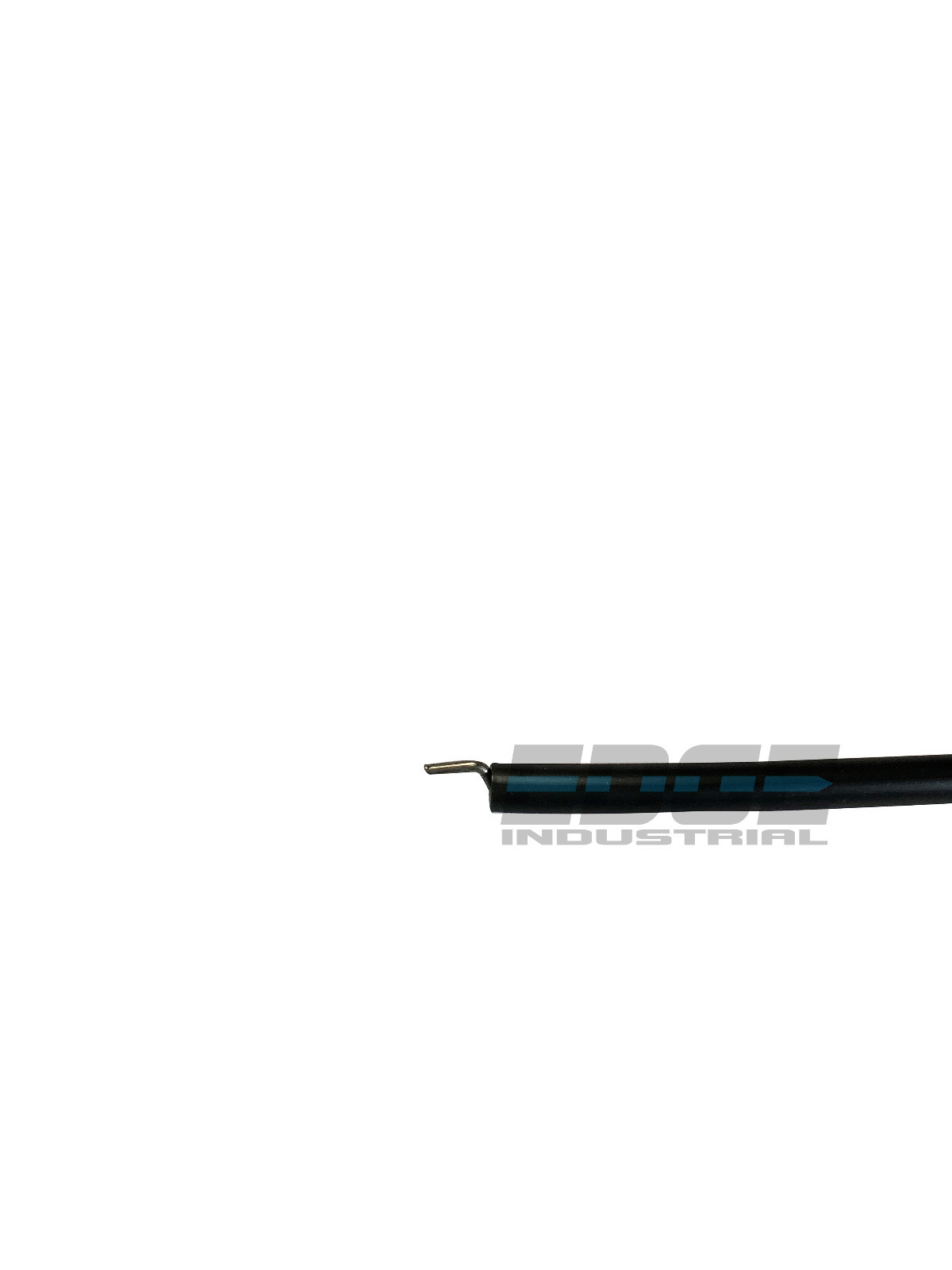

Brand new Throttle Control Cable for Air Compresor  48" BULLWHIP

For use on air compressors 8HP and Under. (if your app calls for more than 8hp, check out our larger style bullwhips in our ebay store)

CHECK OUT OUR FULL LINE OF PILOTED UN LOADERS & DISCHARGE UN LOADERS DESIGNED TO WORK WITH THESE WHIPS.

Cable (BULLWHIP) style throttle controls are used to control engine speed.  The cylinder end of the throttle control is screwed directly into an un loader device via the 1/8 in. port. While the other end is inserted into the throttle arm and mounted at the throttle plate. the permanently lubricated cable is self cleaning, and is protected using routing clamps.

This particular style throttle control cable is used on compressors with external unloading devices and engines 6.5hp and below.

Min Actuation Pressure: 80 psi
Max Operating Pressure: 500 psi
Operating Temperature Range: -15° to 400°F
Stroke Length: 0.65 inch
Retracted Spring Force: 6.7 lbf
Inlet Connection Type: Male NPT
Inlet Connection Size: 1/8″ (-2)

WE WILL BE HAPPY TO ANSWER AND QUESTIONS OR INQUIRIES ABOUT OUR PRODUCTS.
