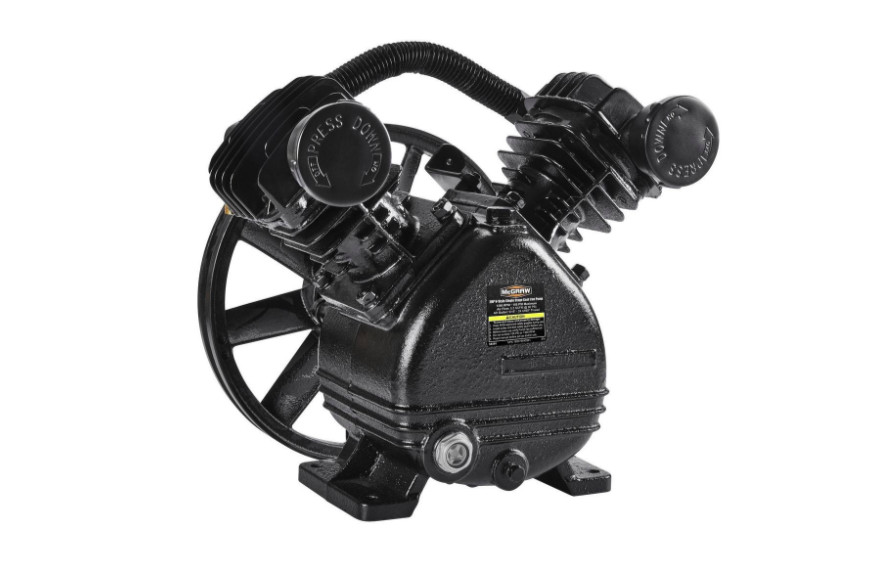

Mcgraw 2 Hp 155 Psi V-style Single Stage Cast Iron Air Compressor

The MCGRAW® 155 PSI V-Style Single Stage Cast Iron Air Compressor Pump is a direct replacement pump for many DEWALT, PORTER-CABLE, SANBORN, POWERMATE, MAGNA FORCE and INDUSTRIAL air compressors. Fits compressors with a 6-3/4 in. x 3-9/16 in. bolt pattern. The pump includes compression fittings to accommodate 3/8 in. or 1/2 in. outlet tubes, plus an extra set of gaskets for future maintenance. Designed for use with a 3.6 in. (min SCFM) to 3.85 in. (max SCFM) motor pulley.

• Cast iron cylinders for durability and long life
• Automotive style ball bearings and stainless steel reed valves for increased durability
• Pleated air filter with metal canister for efficient and durable filtration
• Aluminum head and finned cover for better heat dissipation
• Uses A-width, V-style belt (not included)
• 11.4 oz. oil reservoir (oil not included)
• 155 PSI max working pressure
• 5.3 SCFM @ 90 PSI*
• 1300 RPM max

• * When pump runs at 1300 RPM. Requires A-width, V-style belt, not included.
• This item is subject to a 20% restocking fee
