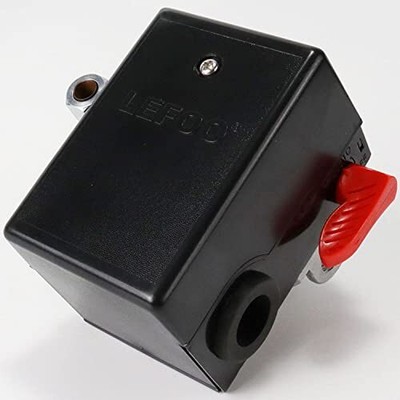

Lefoo Lf15 Heavy Duty Pressure Switch For Air Compressor

Product Description Features:

Model:LF15. Media: air,non-flammable or non-hazardous non corrosinve gases.

Pressure adjusting range:0.3-1.2Mpa. Differential Pressure range:0.15-0.45Mpa.Max working pressure:1.2Mpa.

Working temperature: -20-80℃.Pressure setting point tolerance:≤5%.Contact mode:NC.Protection level: IP20.

Rated voltage :120vac /240vac. Current:26A/20A. Frequency:50HZ/60HZ.

Interface thread:NPT1/4.Installation method: vertically installation.

Product Description:
LF15 series pressure switches,this product 15 used for adjusting the pressure which in the compressor tank to operate between two preset pressure values.The pressure switch with an unloading valve prevents the air compressor from overloading and the handle is supposed to manually power off the compressor . The four- way base connection makes the installation of additional parts more convenient. About Us
