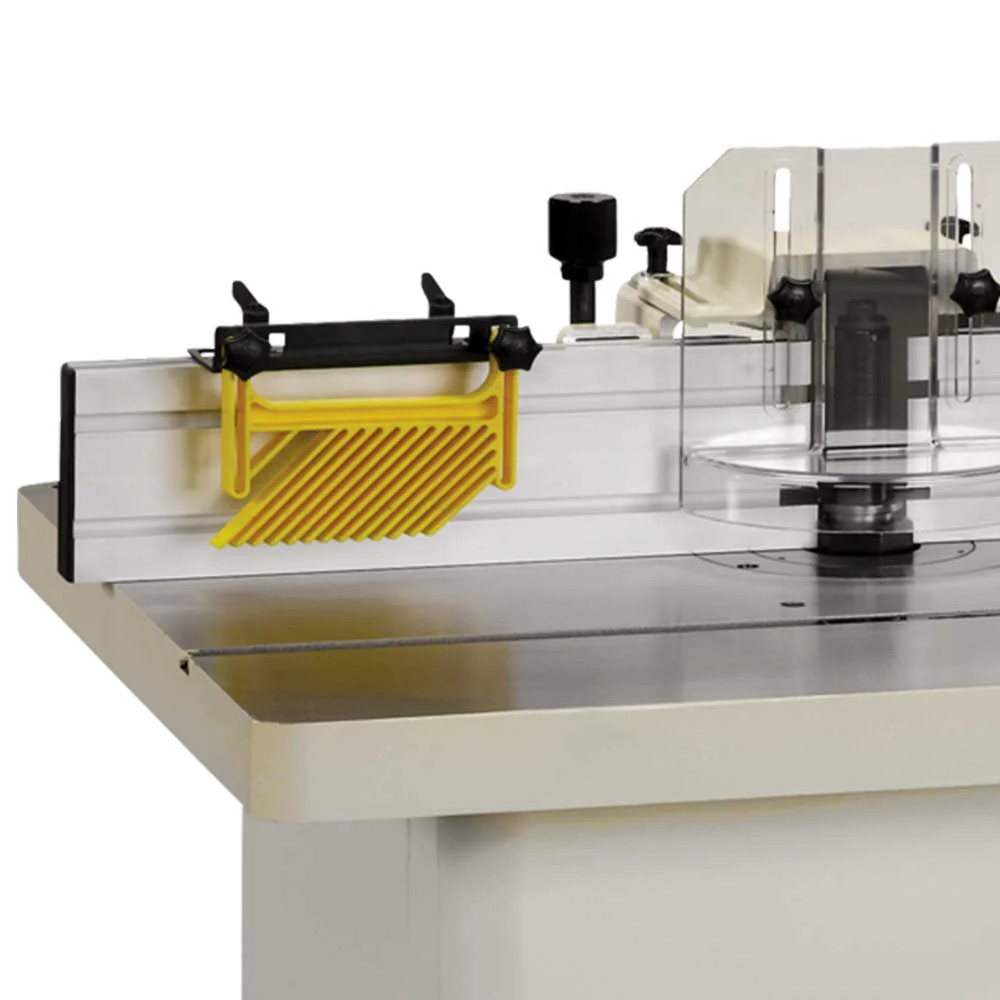

JET JWS-35X5-1 5-Hp 230V 1-Ph Heavy Duty Cast Iron JET Shaper

ÿ Features

• Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
• Powerful 5HP, 1Ph motor with magnetic controls
• Poly-V-belt transfers maximum power to the spindle
• Large 26-3/4? X 32-1/4? precision ground cast iron table provides a durable work area, predrilled for power feeder
• Spindle height scale
• Starting pins for irregular shaping
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• Reversible spindle speeds for diverse shaping jobs
• 4" Dust port built into fence for convenient hookup to any dust collection system
• Spindle lock for safe and easy cutter set-up

What?s in The Box

• JWS-35X5-1 Industrial Shaper 5HP, 1Ph 708326

Warranty

• JET Red Assurance 2-Year Warranty. JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
• 30 Day Satisfaction Guaranteed

Specifications Spindle Speed (RPM) 4000/6000/8000/10000 Maximum Spindle Diameter (In.) 1-1/4 Spindles Included 1-1/4" Spindle Size Under Nut (In.) 4 Spindle Travel (In.) 4 Reversible Yes Maximum Diameter Cutter Above Table (In.) 7-1/2 Maximum Diameter Cutter Below Table (In.) 6 Table Opening Diameter (In.) 6-19/64 Table Inserts (In.) 2 Table Insert Opening Diameter (In.) 2-9/16, 4-5/16 Table Size (L x W) (In.) 32-1/4 x 26-3/4 Table T-Slot (In.) 3/4 x 3/8 Table Height from Floor (In.) 33-1/4 Fence Size (L x H) (In.) 16 x 4-3/4 Fence Travel (Major and Minor) (In.) 4, 1 Dust Port Outside Diameter (In.) 4 Dust Collection Minimum CFM Required (CFM) 600 Electrical Controls Yes Motor Power (HP) 5 Motor Phase (PH) 1 Motor Voltage (V.) 230 Prewired Voltage (V.) 230 Motor Amps 17 why buy from us? secure & hassle-free shopping
