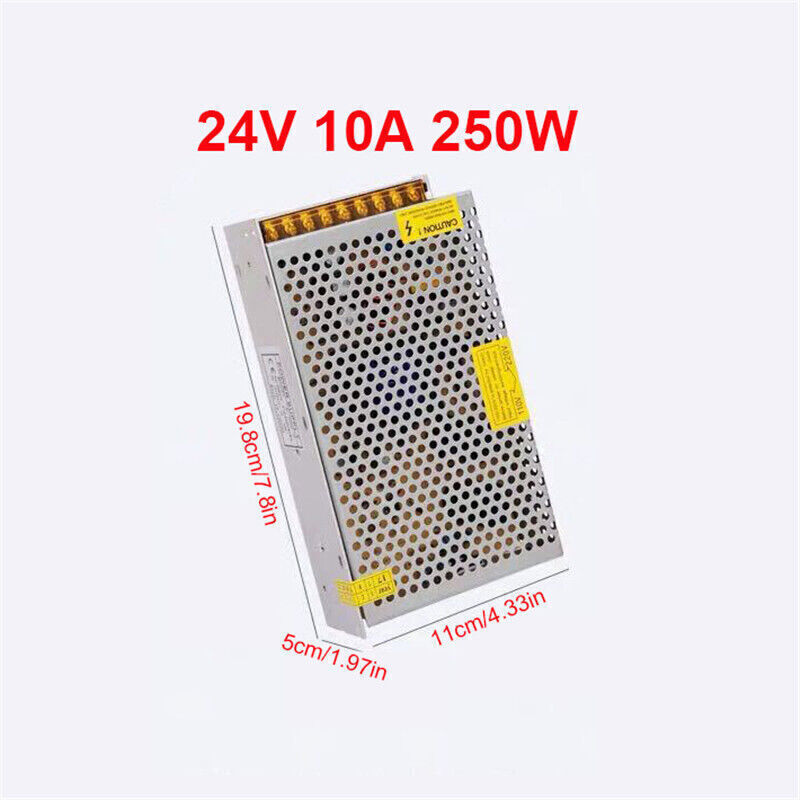

Free shipping DC 12V 1A to 50A Amp AC 110V 220V Switch Power Supply LED Strip Light 12 V Volt Product Description 24V Description: 100% brand new and high quality. Universal AC input / full range. It's good quality & high performance. Input: AC110/220V 50/60Hz. 100% full load burn-in test. Protections: overload/ over voltage/ short circuit. Cooling by free air convection. How to Calculate Support max LED Strip Length: Assumption: Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max LED Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 60W(this listing)÷12W/m=5m, So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=5M ( Indoor use only! Not suggest for use in bathroom!) Connection: L, N: AC Power Input GND: DC Power Output "-" V: DC Power Output "+" +V / ADJ: Adjust the Output Voltage Safety Compliance: CCC/ FCC / CE Working Temperature: 0~40°C Storage Temperature: -20~60°C Ambient Humidity: 0~95% Non-Condensation Type(Output) & Size: 24V 2A 50W 4.3*2.95*1.38in 24V 5A 120W 6.22*3.86*1.65in 24V 6.2A 150W 7.8*3.86*1.65in 24V 8.3A 200W 7.8*3.86*1.65in 24V 10A 250W 198 x 98 x 42mm / 7.8 x 3.86 x 1.65in 24V 12.5A 300W 7.8*4.33*1.97in with Internal Fan 24V 15A 360W 8.39*4.45*1.97in with Internal Fan 24V 17A 400W 8.39*4.45*1.97in with Internal Fan 24V 20A 500W 8.39*4.45*1.97in with Internal Fan 24V 25A 600W 8.39*4.45*1.97in with Internal Fan Package Included: 1 x Switch Power Supply Driver For LED Strip Pixel light Note: This is a DC 24V Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc. Safety design with shortage protection, overload protection and auto voltage switching. Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED. Full range of current output is possible for LED lighting with dimmable function. Voltage output fine adjustment is available for different power condition. About Calculate Method: If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m, So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m Special Note: This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws. Professional Installation of qualified electrician is highly recommended. Note: IN-DOOR USE ONLY! No installation instruction, wiring cable, on/off switch, or screws come with. Professional installation of qualified electrician is highly recommended. 12V Features: Universal AC input / full range It's good quality & high performance Input:AC110-220V 50/60Hz Out put:DC 12V 50A 100% full load burn-in test Protections: overload/ over voltage/ short circuit Cooling by free air convection How to calculate Support max LED Strip Length: Assumption: Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max LED Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 60W(this listing)÷12W/m=5m, So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=5M (Not suggest for use in bathroom) Connection: L, N: AC power input GND: DC power output "-" V: DC power output "+" +V / ADJ: Adjust the output voltage Safety Compliance: CCC/ FCC / CE Working Temperature: 0~40°C Storage Temperature: -20~60°C Ambient Humidity: 0~95% Non-Condensation Compatible with 3528, 2835 ,3014, 5050, 5630 ,5730 Led strip lights Type(Output) Size (LxWxH) Weight:
12V 1A 15W 70mm*38mm*31mm59g
12V 3A 36W 85mm*57mm*33mm 16g
12V 5A 60W 110mm*77mm*36mm 199g
12V 10A 120W 158mm*98mm*40mm 367g
12V 15A 180W 200mm*100mm*43mm 480g
12V 20A 250W 200mm*100mm*43mm 610g
12V 30A 360W 215mm*115mm*50mm 746g
12V 40A 500W 215mm*115mm*50mm 746g
12V 50A 600W 215mm*115mm*50mm 746g Package include: 1 x Switch Power Supply Driver For LED Strip light Note: 1.This is a DC12V Power Supply Unit for professional use on LED lighting, Security Surveillance System, CCTV Security Camera, IP Camera, and etc. 2.Safety design with shortage protection, overload protection and auto voltage switching. 3.Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED. 4.Full range of current output is possible for LED lighting with dimmable function. 5.Voltage output fine adjustment is available for different power condition. About Calculate Method: If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m, So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m Special Note: This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws. Professional Installation of qualified electrician is highly recommended. Note: IN-DOOR USE ONLY! No installation instruction, wiring cable, on/off switch, or screws come with. Professional installation of qualified electrician is highly recommended. Payment Shipping Returns Contact Us Payment 1.
