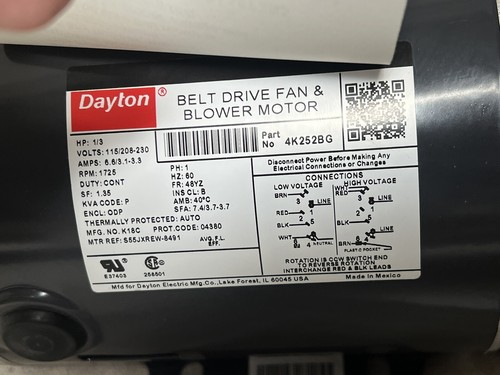

DAYTON 4K252BG Belt Drive Motor 1 Speed Open Dripproof 1/3 HP 1,725

I am offering a new DAYTON 4K252BG Belt Drive Motor 1 Speed Open Dripproof 1/3 HP 1,725 Nameplate RPM. This is listed as ‘New(Other)’ because the original packaging was damaged. Otherwise, it is new and in excellent condition. Please review all images. Specs:
Brand
DAYTON
Manufacturer Part Number
4K252
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Phase
Single
Motor Design
Split-Phase
HP
1/3
Nameplate RPM
1,725
No. of Speeds
1
Voltage
115/208-230V AC
Full Load Amps
6.6/3.1-3.3
Frame
48YZ
Hz
60
Motor Service Factor
1.35
Motor Thermal Protection
Auto
Ins. Class
B
Max. Ambient Temp.
40 °C
Duty Cycle
Continuous
Motor Shaft Rotation
CW/CCW
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
Motor Mounting Position
All Angle
Motor Frame Material
Rolled Steel
Shaft Dia.
1/2 in
Shaft Length
1-7/8 in
Motor Shaft Design
Flat
Motor Bearings
Ball
Overall Length
10-1/4 in
Length Less Shaft
8-3/8 in
Body Dia.
5-5/8 in
Ring to Ring Center
8-1/16 in
Resilient Ring Dia.
2-1/2 in
Nominal Efficiency
56.4 %
Standards
CSA Certified (258501); UL Recognized (E37403)
RPM Range
1,701-1,800
UNSPSC
26101602
Country of Origin
Varies (subject to change) Thanks for looking!  Your satisfaction is guaranteed. Location: 6-B-2

Returns Accepted for this item if it's within 30 Days
