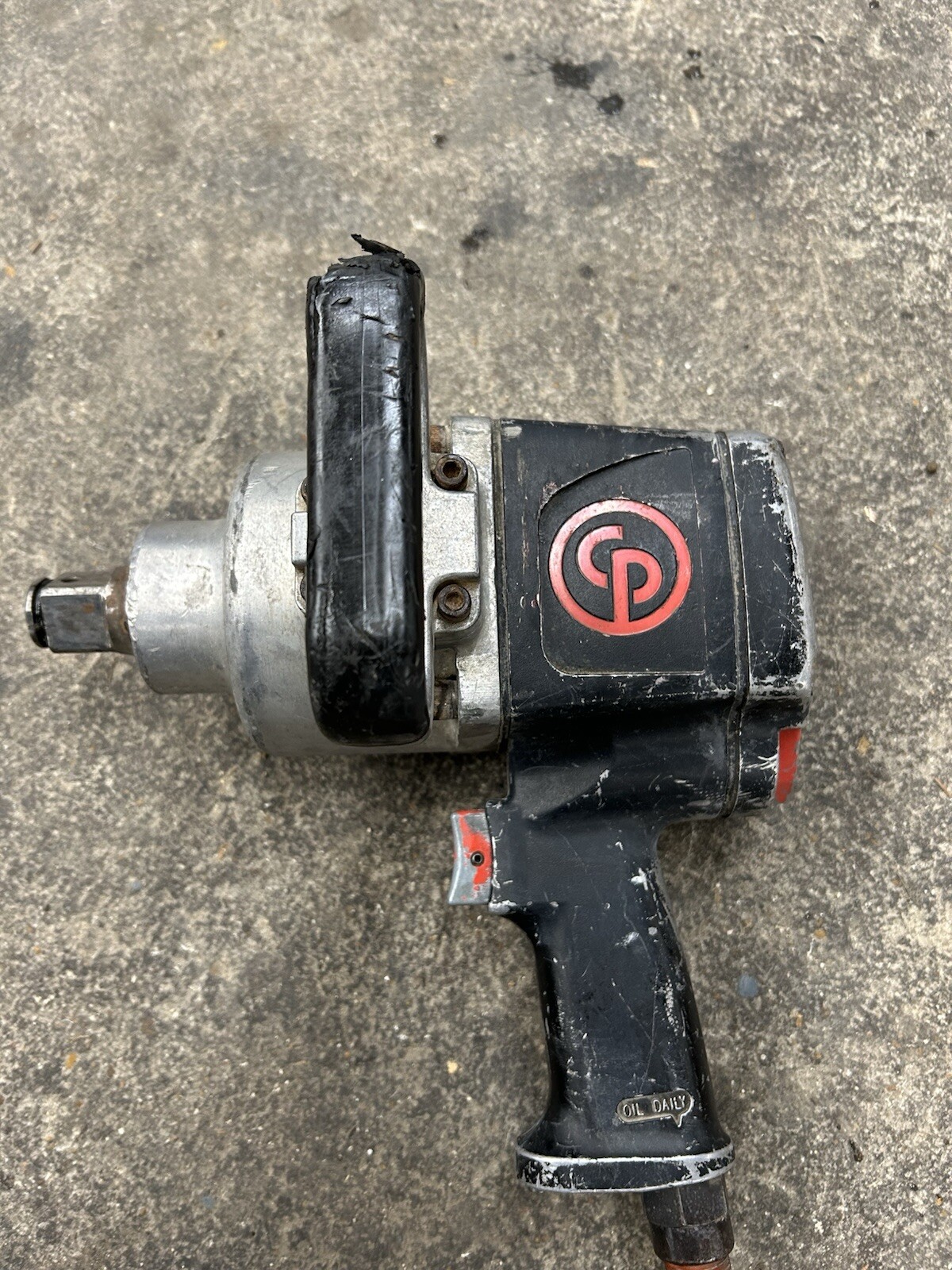

Chicago-Pneumatic CP796 796 1" Dr. Extreme-Duty Air Impact Wrench

CP796 1" Dr. Extreme-Duty Air Impact Wrench

Features

1" Extreme duty impact wrench

2 jaw clutch

Very high torque: 2000 ft-lbs (2712 Nm)

Compact housing design

Adjustable side handle

Benefits
• The industry's best power to weight ratio in the 1" class
• Powerful motor and extremely durable clutch
• Operator comfort
• Industrial quality and dependability

Part number T019799 Model CP796 Box dimensions 410x260x250 Handle type Pistol Square drive 1" Working Torque Range (fwd) 407-1898 Nm 300-1400 Working Torque Range (fwd) 300-1400 ft.lbs 407-1898 Maximum Torque (reverse) 2712 Nm 2000 ft.lbs Maximum Torque (reverse) 2000 ft.lbs 2712 Nm Free speed 4100 rpm Blows per minute 900 Weight 20 lb 9.07 kg Weight 9.07 kg 20 lb Length 9.5" 241 mm Length 241 mm 9.5" Average air consumption 13 cfm Average air consumption 6.1 l/s 13 cfm Actual air consumption 52 cfm Actual air consumption 24.5 l/s 52 cfm Air inlet thread size 1/2 NPTF in. Min. hose size 13 mm 1/2" Min. hose size 1/2" 13 mm Noise level 101 db(A) Sound Power 112 db(A) Vibration (ISO-8662-7) 13 m/s² Vibration α (ISO-28927-2) 18.2 m/s² Vibration K (ISO-28927-2) 3.8 m/s² Socket retainer Hole
Clutch type 2-jaw
