Chevy C10 1963-64 Air Bag Suspension Bolt On Kit Front & Rear w/Slam Bags

Fits:

• 1963 - 1964 Chevy C10
• 1963 - 1964 Chevy C10 Panel
• 1963 - 1964 Chevy Suburban
• 1963 - 1964 GMC 1000 Series Pickup
• 1963 - 1964 GMC Suburban

Includes:

• 1 - Set of Front Bag Mounts and Brackets
• 1 - Set of Rear Bag Mounts and Brackets
• 1 - Gauge Panel w/ Mounting Tab
• 4 - Slam Specialties SS-7 Air Bag Springs
• 4 - Air Lift Manual Paddle Valves
• 1 - Viair 40 Amp Relay
• 1 - Viair Pressure Switch
• 1 - 200 PSI Air Tank
• 1 - Viair Compressor
• 2 - Viair Dual Needle BLACK Face Pressure Gauges
• 1 - McGaughys Panhard Bar Adjustable
• 50 - Feet 1/4" Air Line
• 4 - 1/2" NPT to 1/4" PTC Bag Fittings
• Hardware

Mounts & Bracket Specs:

• Material: .188 CRS (Cold Rolled Steel)
• Cutting: CNC Laser
• Finish: Raw
• Manufactured in the USA by Grunion Fabrication
• Mounting Hardware: Included

Bag Specs:

• Specialties SS-7
• Diameter @ 0 PSI - 7"
• Diameter @ Max PSI - 7"
• Stroke - 9.3"
• Max PSI - 250
• Plate Material - Composite
• Min Height - 2.7"
• Max Height - 12"
• Mounting Top - 2 @ 3/8" - 16
• Mounting Btm - 3 @ 3/8" - 16
• Air Port NPT - 1 @ 1/2"
• Internal Bump Stops - Integrated
• Force to Collapse - 50 lbs

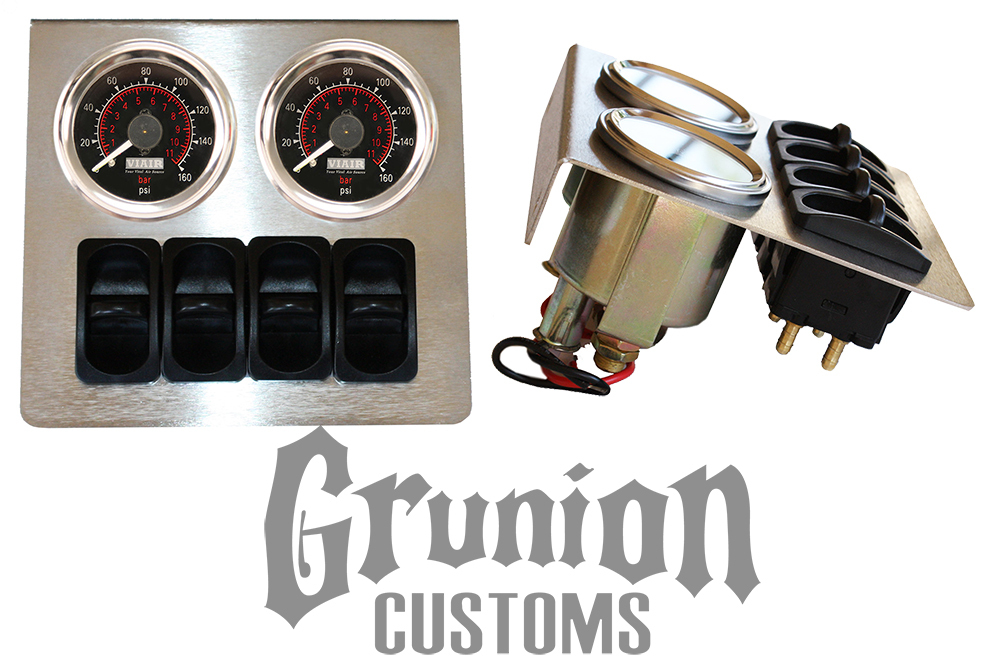

Gauge Panel Specs:

• 304 Stainless Steel x .060" Thick
• Height: 5.125"
• Width: 5.25"
• Mounting Flange Depth: 1.125" w/ 2 Holes
• Manufactured by Grunion Fabrication in the USA

• Requires 1/8" Female NPT Compression Fitting for Installation (NOT INCLUDED)
• 2 - 1/8" Male NPT on Back Side
• Amber Color Back Light
• Dual Needle
• Chrome Bezel
• Pressure Measures - PSI and BAR
• Face Diameter - 2.0625"

Paddle Valve Specs:

• Switch / Valve allow you to control Airflow from Tank to Bags
• Does not require Electrical hook up
• Raise or Lower your truck in approximately 8 seconds
• Side Push Tabs to snap in place
• Complete FBSS Control

Air Line / Fitting Specs:

• 1/8" OD Air Line - Use 1/8" PTC x 1/8" Female NPT
• 1/4" OD Air Line - Use 1/4" PTC x 1/8" Female NPT

WARRANTY NOTICE:  There are no Warranties, either expressed or implied.  Neither the Seller nor Manufacturer will be liable for any loss, damage or injury, direct or indirect, arising from the use or inability to determine the appropriate use of any products.  Before any attempt at installation, consult w/ a PROFESSIONAL INSTALLER.  In this connection, the user assumes all responsibility and risks.  No Guarantees are made in reference to any specific class legality of any component.  ALL PRODUCTS ARE INTENDED FOR TRACK OR OFF-ROAD USE AND MAY NOT BE LEGAL TO USE ON THE HIGHWAY.  The products offered for sale are true track and off-road components and, in all cases, requires Installation and or Fabrication SKILL.  No product or service is designed or intended to PREVENT injury or DEATH.

Images are for illustrative purposes only, parts come in raw metal
