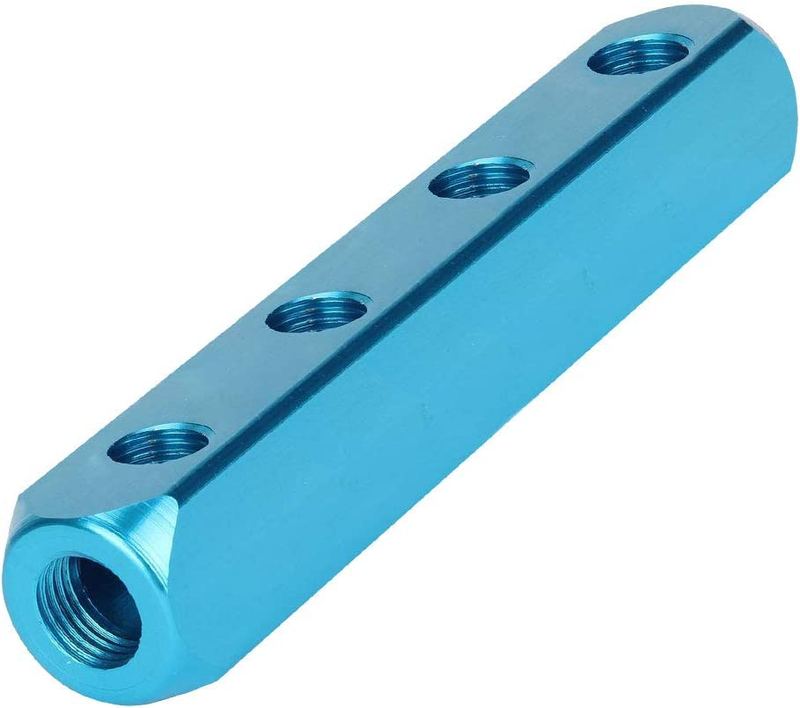

1/4 4 Way 7 Port Aluminum Air Hose Inline Manifold Block Splitter Air Compressor

Material : Aluminum , Color: Sky Blue (Nickel Plated)

Position : 4 Way ; Number of Threaded Ports : 7 Ports ; Threaded Port Diameter :1/4" Inch

Working Pressure : 0-1MPa ; Pressure Resistance : 1.2MPa ; Working Temperature：32 - 140 °F

Installing is easy to insert or pull out , All ports are in the same size.

It takes one line of air from a pump, air cylinder, compressor, vacuum engine, or other such system and splits it into many of them.

Beduan Air cylinder manifold is the starting points for air cylinder systems.Can be mounted in line or at a take-off point easily with the 1/4 inch PT diameter threaded hole design. Single row manifold Type and corrosion resistance material. It takes one line of air from a pump, air cylinder, compressor, vacuum engine, or other such system and Splits it into many of them. All ports are in the same size, so that you can use it as a 1 in 5 out, 2 in 4 out, 3 in 3 out and so on to meet your own requirement. Caution!! This quick fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment.

Returns Accepted for this item if it's within 30 Days
